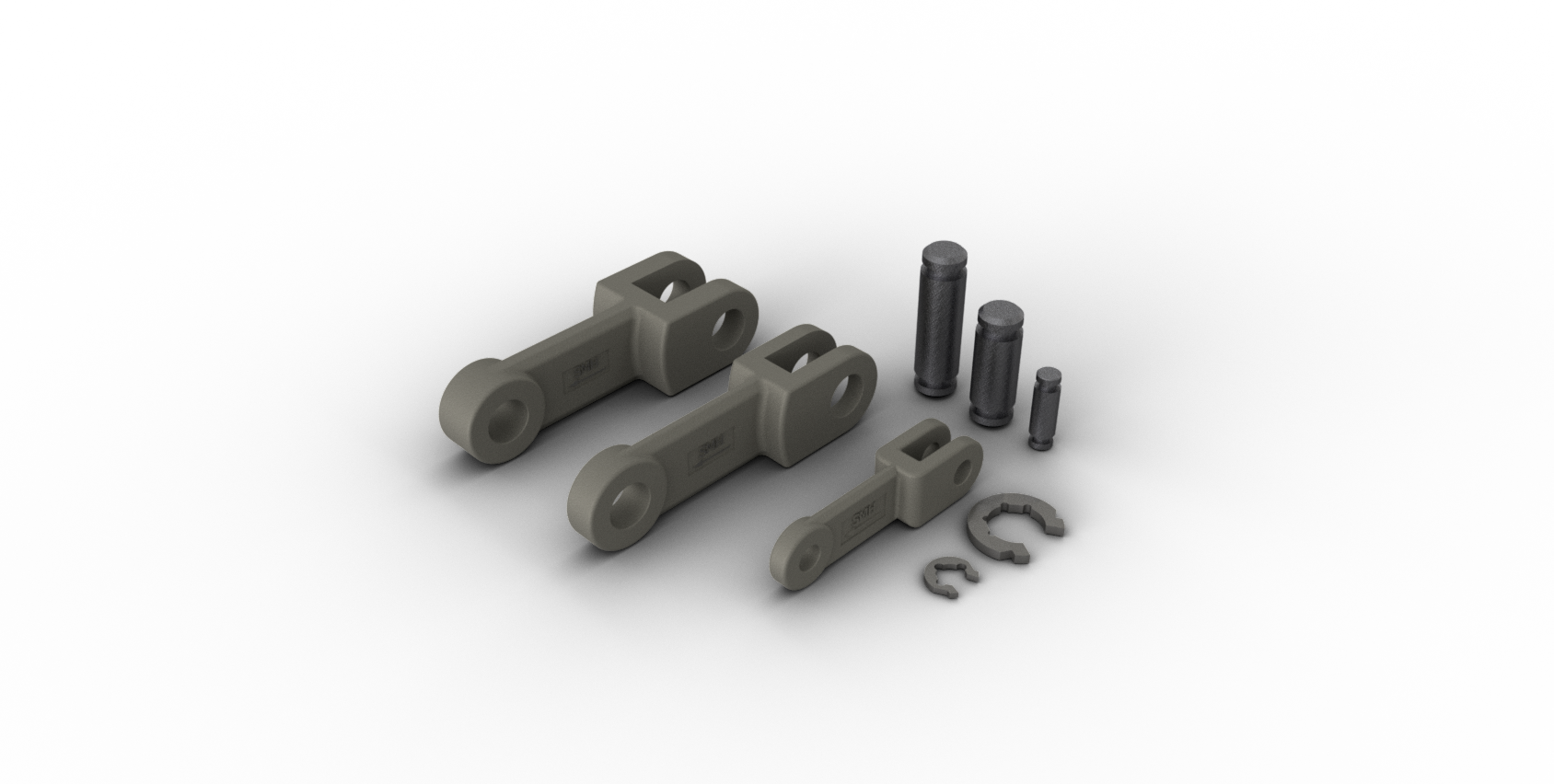

Skilled Materials Handling's chain conveyors use specialised industrial chain assemblies that includes unique case-hardened drop-forged chain links. When these links are used in conjunction with Skilled Materials Handling's Connecting Pins and Circlips, they form a Chain Assembly that can withstand incredibly high breaking loads (standard links go up to 400 kN but non-standard links can exceed 1000 kN).
Chain Links
| Part Number | Item | Pitch (mm) | Breaking Load (kN) |
|---|---|---|---|
| CC-07-01 | CC Chain Link (L10215) | 102 | 150 |
| CC-07-02 | CC Chain Link (L14230) | 142 | 300 |
| CC-07-03 | CC Chain Link (L14240) | 60 | 10 |
Connecting Pins
| Part Number | Item | Ø (mm) | To Suit |
|---|---|---|---|
| CC-08-01 | CC Connecting Pin (P10215) | 16 | CC-07-01 |
| CC-08-02 | CC Connecting Pin (P14230) | 25 | CC-07-02 |
| CC-08-03 | CC Connecting Pin (P14240) | 25 | CC-07-03 |
Circlips
| Part Number | Item | Thk (mm) | To Suit |
|---|---|---|---|
| CC-09-01 | CC Circlip (C16) | 3 | CC-08-01 |
| CC-09-02 | CC Circlip (C25) | 5 | CC-08-02 CC-08-03 |
